tapered tissue level dental implant system

BioHorizons Tapered Tissue Level dental implants with Laser-Lok microchannels
Tapered Tissue Level dental implants feature a 1.8mm transmucosal collar for one stage procedures and Laser-Lok surface technology to inhibit epithelial downgrowth, attach connective tissue and create a biologic seal around the implant.15 Tapered Tissue Level dental implants are available in 4 diameters including the only 3mm tissue level implants currently available for tight spaces.45

Shop Online shop online
Tapered HD Surgical System Catalog & Manual (TSK4000)
connective tissue attachment
uniquely creates a physical connective tissue attachment
Tapered Plus dental implants maintain soft tissue
bone attachment
Laser-Lok® microchannels achieve superior osseointegration
Tapered Plus dental implants maintain crestal bone
tapered tissue level dental implant
tapered tissue level dental implant
Tapered Tissue Level dental implants conical internal hex
restorative ease
Conical internal hex connection is color-coded for quick identification and component matching. Simple Solutions abutment and restorative packs include everything needed to complete the restoration.

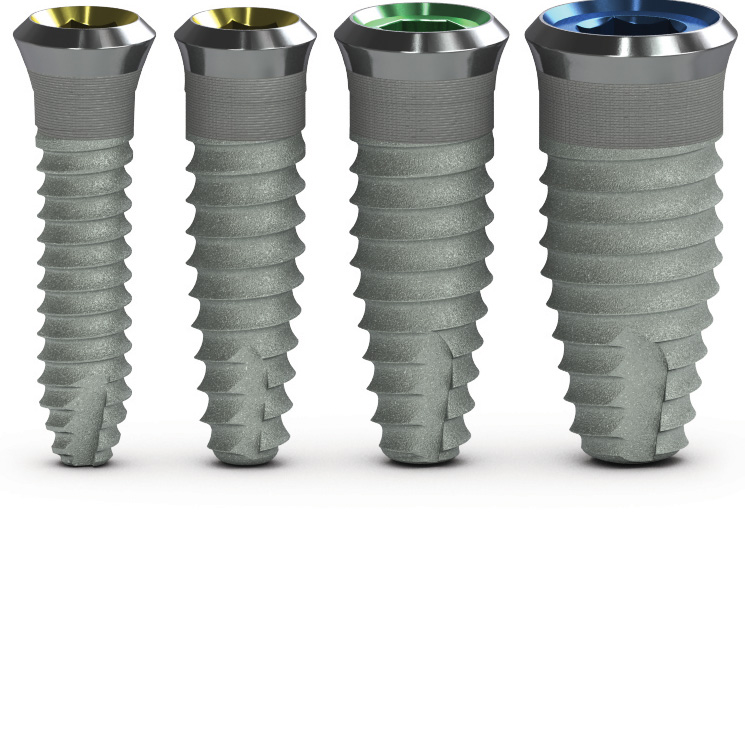

Tapered Tissue Level dental implant

Tapered Tissue Level dental implant features

Anatomically tapered body and proprietary buttress threads for compressive bone loading and
excellent primary stability.

surface treatment
delivery options
platform diameters
body diameters
conical internal hex
tissue level
Laser-Lok collar with RBT body
3.5mm | 3.5mm | 4.5mm | 5.7mm
3.0mm | 3.8mm | 4.6mm | 5.8mm
7.5mm | 9mm | 10.5mm | 12mm
Tapered Tissue Level Dental Implant
Tapered HD Universal Surgical Kit

Tapered HD Surgical Kit

Includes the instrumentation required to place: Tapered Plus,Tapered 3.0, Tapered Tissue Level, Laser-Lok 3.0 & Tapered Internal including the 3.4mm diameter and 18mm lengths. Learn more about the Tapered HD Surgical Kit.

  • includes Tapered HD instruments
  • versatile, removable, hinged lid
  • 40% smaller and 40% lighter than other kits
  • easy to disassemble for cleaning
  • implant staging area for implant vials during surgery
  • use to place Tapered Plus, Tapered Internal, Tapered Tissue Level, Tapered 3.0 and Laser-Lok 3.0
  • empty spare slots for other instrumentation such as stop drills or extended shank drills
Tapered HD drills

Tapered HD instruments

The Tapered HD drills feature highly efficient cutting flutes for crisp osteotomies in even the densest bone. Simplified drill markings correspond to the six Tapered Internal family implant lengths.

  • cutting flutes designed for maximum efficiency
  • non-reflective surface for high visibility
  • simplified drill markings match each implant length
  • compatible with Tapered Internal, Plus, 3.0, Tissue Level and Laser-Lok 3.0
  • creates 12-20 osteotomies depending on bone density
  • recommended drill speed 1,500-2,000 rpm (2.0 & 2.5mm), 1,000 rpm (all others)
Tapered Internal Surgical Kit
Not available in all countries.
