OD Secure abutments

OD Secure

OD Secure abutments

OD Secure kit

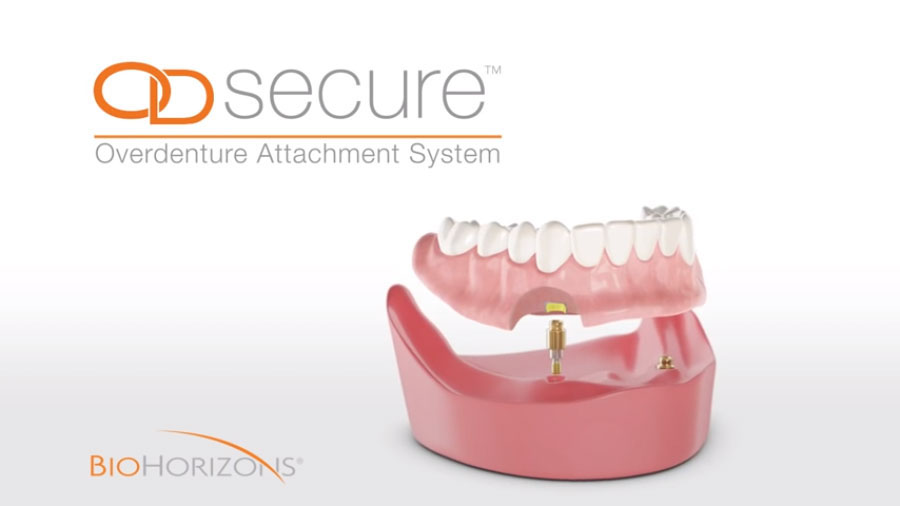

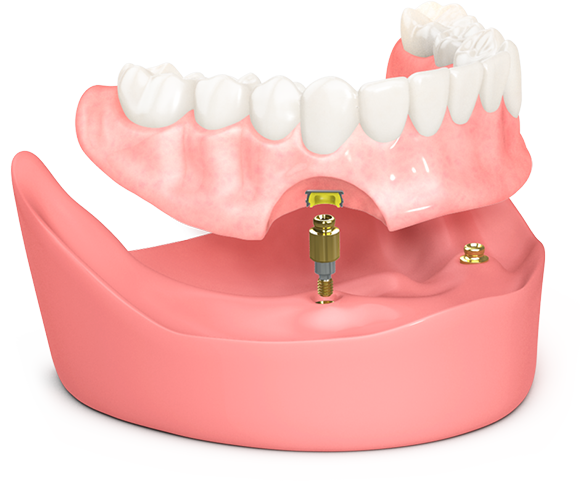

The OD Secure abutment uses the industry's lowest profile connection to attach dentures and partial dentures to dental implants. With a full range of cuff heights for every platform (3.0mm–5.7mm), the OD Secure provides attachment solutions for even the most challenging cases. The abutment is designed for easy delivery using an .050" hex driver and is color-coded to ensure that the abutment matches the implant platform every time.

OD Secure

components

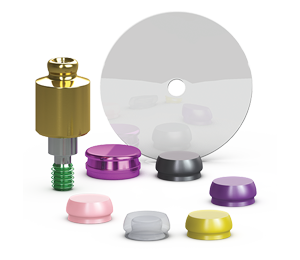

all-in-one packaging

Everything needed to restore a case in one simple package

pack

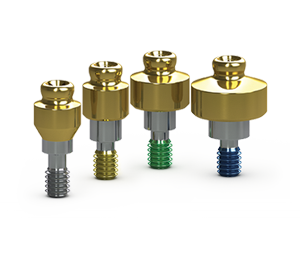

color-coded

color coding to easily identify the proper platform size

color-coded

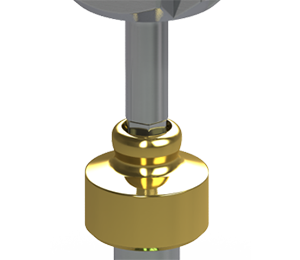

.050" hex driver

delivered and torqued with an .050" (1.25mm) hex driver

hex driver

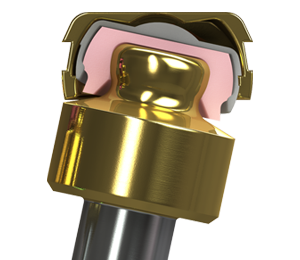

50° between implants

Xtend housing cap corrects up to 50° of divergence

50 degrees

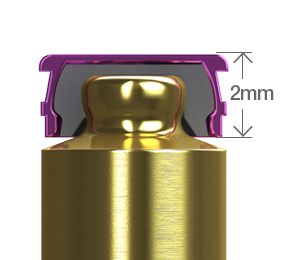

low profile design

total height of 2mm with insert and housing cap

 low profile

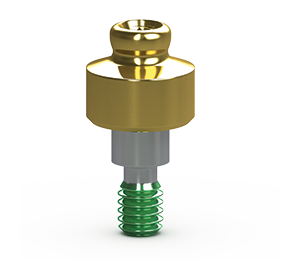

wear-resistant coating

titanium nitride coating for enhanced durability and strength

wear-resistant coating

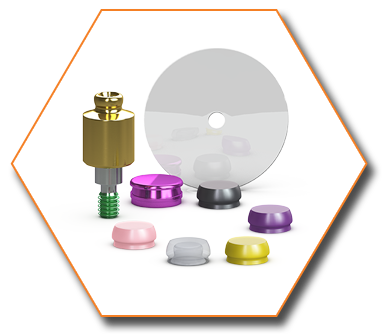

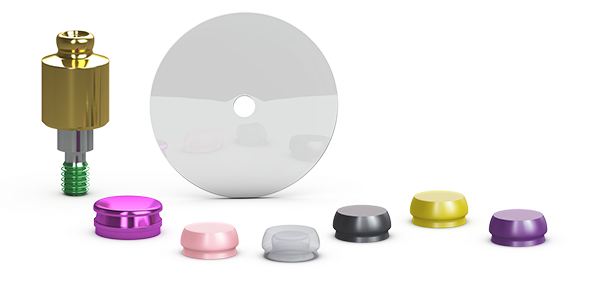

Kit includes:

  • (1) titanium implant abutment
  • (1) pink housing cap
  • (1) protective disk
  • (1) lab insert
  • (4) retentive inserts
3.0mm platform 3.0mm platform
3.5mm platform 3.5mm platform
4.5mm platform 4.5mm platform
5.7mm platform 5.7mm platform
0.5mm cuff height
3.0mm platform 3.0mm platform TP3ODSK0
3.5mm platform 3.5mm platform PYODSK0
4.5mm platform 4.5mm platform PGODSK0
5.7mm platform 5.7mm platform PBODSK0
1mm cuff height
3.0mm platform 3.0mm platform TP3ODSK1
3.5mm platform 3.5mm platform PYODSK1
4.5mm platform 4.5mm platform PGODSK1
5.7mm platform 5.7mm platform PBODSK1
2mm cuff height
3.0mm platform 3.0mm platform TP3ODSK2
3.5mm platform 3.5mm platform PYODSK2
4.5mm platform 4.5mm platform PGODSK2
5.7mm platform 5.7mm platform PBODSK2
3mm cuff height
3.0mm platform 3.0mm platform TP3ODSK3
3.5mm platform 3.5mm platform PYODSK3
4.5mm platform 4.5mm platform PGODSK3
5.7mm platform 5.7mm platform PBODSK3
4mm cuff height
3.0mm platform 3.0mm platform TP3ODSK4
3.5mm platform 3.5mm platform PYODSK4
4.5mm platform 4.5mm platform PGODSK4
5.7mm platform 5.7mm platform PBODSK4
5mm cuff height
3.0mm platform 3.0mm platform TP3ODSK5
3.5mm platform 3.5mm platform PYODSK5
4.5mm platform 4.5mm platform PGODSK5
5.7mm platform 5.7mm platform PBODSK5
6mm cuff height
3.0mm platform 3.0mm platform TP3ODSK6
3.5mm platform 3.5mm platform PYODSK6
4.5mm platform 4.5mm platform PGODSK6
5.7mm platform 5.7mm platform PBODSK6

spec chart

surface
TiN coating
indexing
non-hexed
platform diameter
3.0mm
(gray)
3.5mm
(yellow)
4.5mm
(green)
5.7mm
(blue)
material
titanium alloy
abutment type
final abutment

additional information

Not available in all countries.



×
